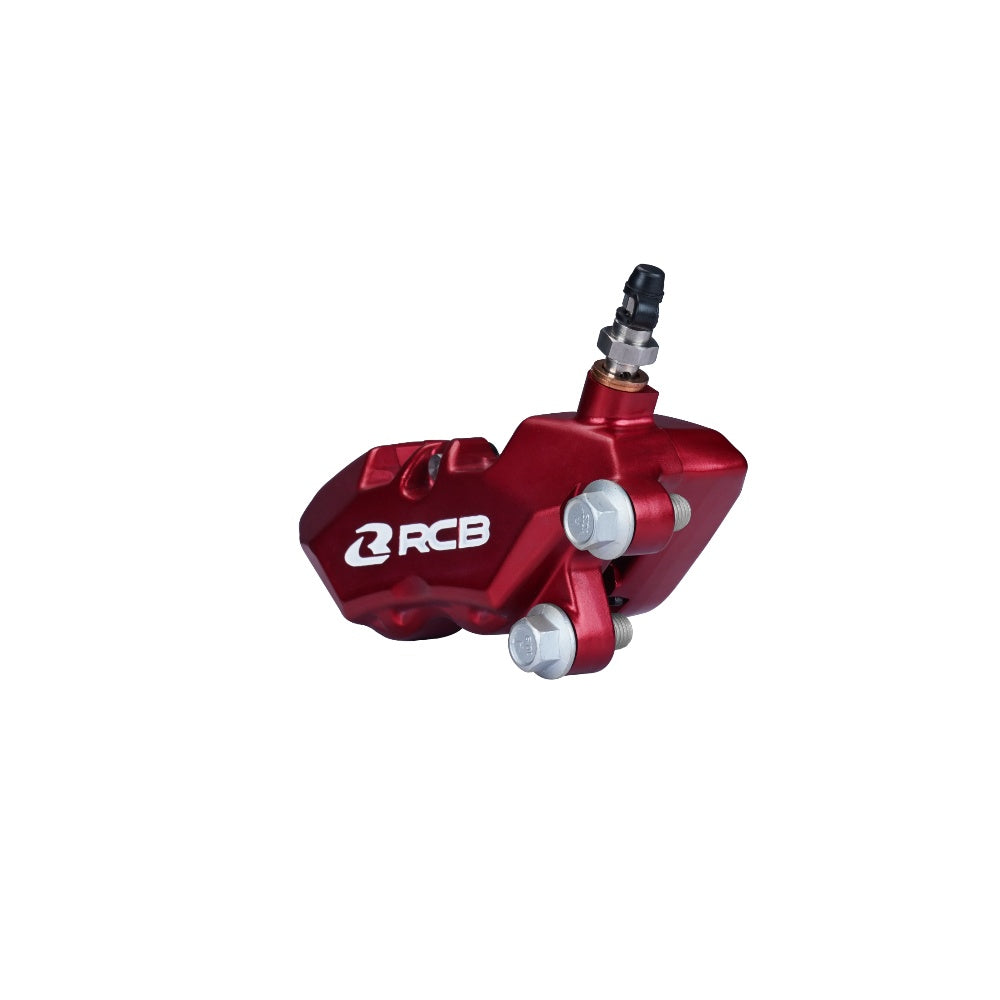

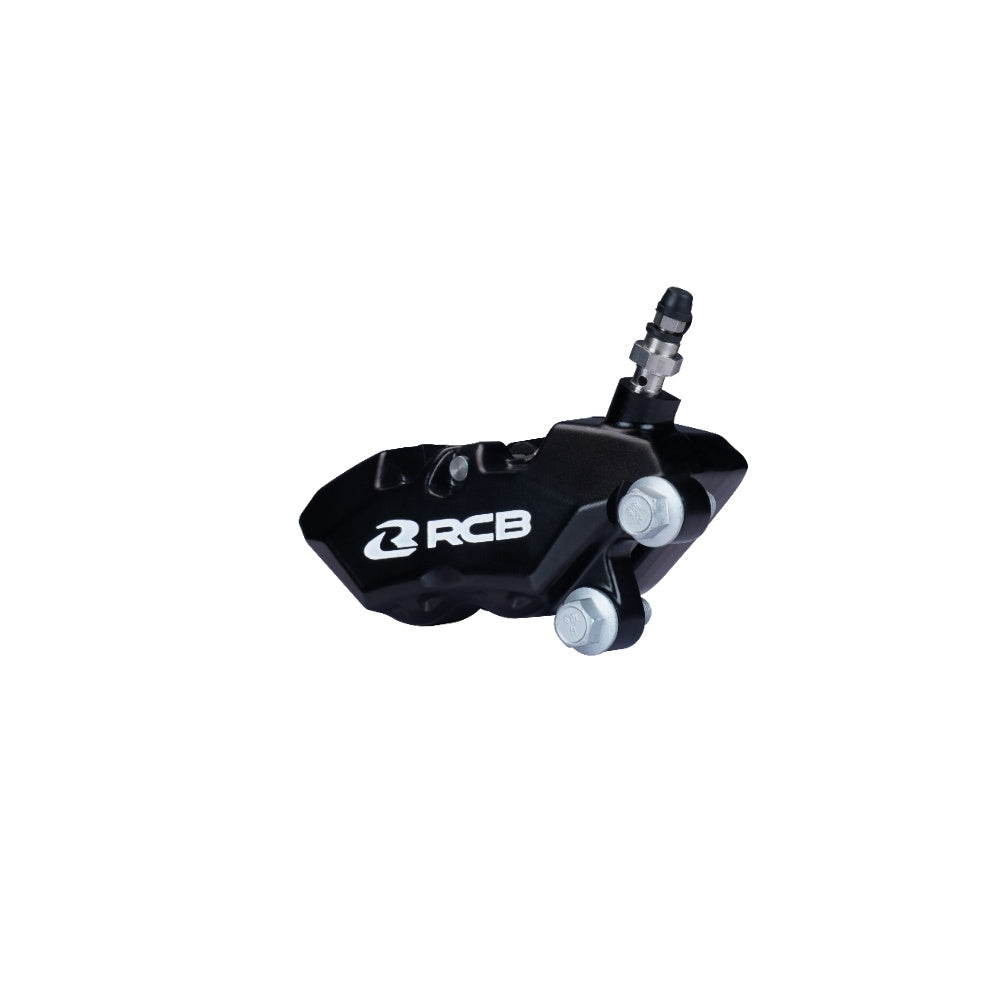

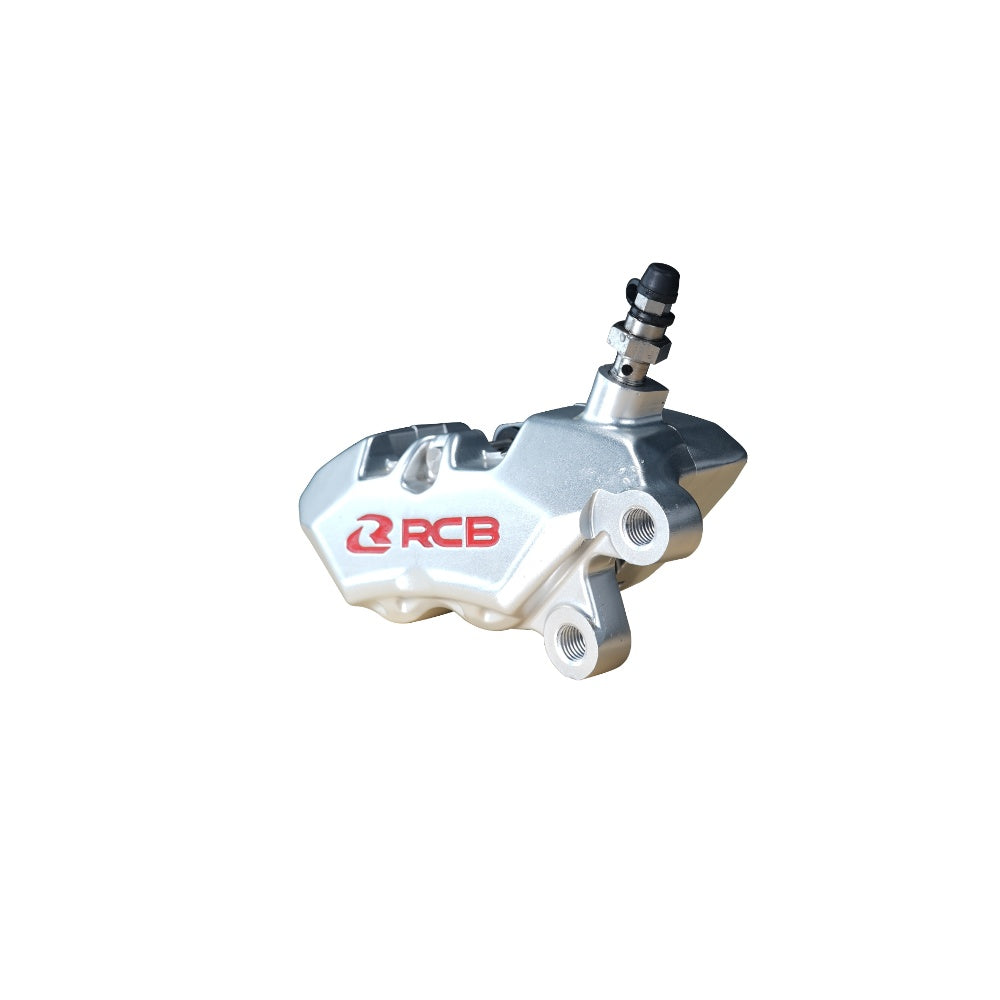

RCB R1 SERIES BRAKE CALIPER 4 PISTON
** RH - POSITION RIGHT SIDE (Example LC135 / Y15 / RS150)
Product Code : 01BC047A - BLUE (RIGHT SIDE)
Product Code : 01BC047B - BLACK (RIGHT SIDE)
Product Code : 01BC047G - GOLD (RIGHT SIDE)
Product Code : 01BC047R - RED (RIGHT SIDE)
** LH - POSITION LEFT SIDE (Example CLICK / VARIO / ADV)
Product Code : 01BC082A - BLUE (LEFT SIDE)
Product Code : 01BC082B - BLACK (LEFT SIDE)
Product Code : 01BC082G - GOLD (LEFT SIDE)
Product Code : 01BC082R - RED (LEFT SIDE)
COMPATIBILITY : UNIVERSAL
FEATURES:
- 4 PISTON PERFORMANCE CALIPER
- 4 FASTENING SCREWS TO STRENGTHEN THE TWO-PIECE FORGED BODY ASSEMBLY.
- LONGER LIFE SPAN FOR BRAKE PADS
- DUAL SIZED PISTONS. 34MM X 2 (LEADING) & 30MM X 2 (TRAILING)
- EQUAL DISTRIBUTION OF PRESSURE ACROSS BRAKE PADS.
BRACKET:
- USE BRACKET CALIPER R1 FROM RCB OR BRACKET CALIPER P4
** THE DISTANCE BETWEEN 2 SCREW TIES THE BRACKET FROM THE END TO THE END IS 50MM
** SIZE OF THE HOLE IS 10MM
