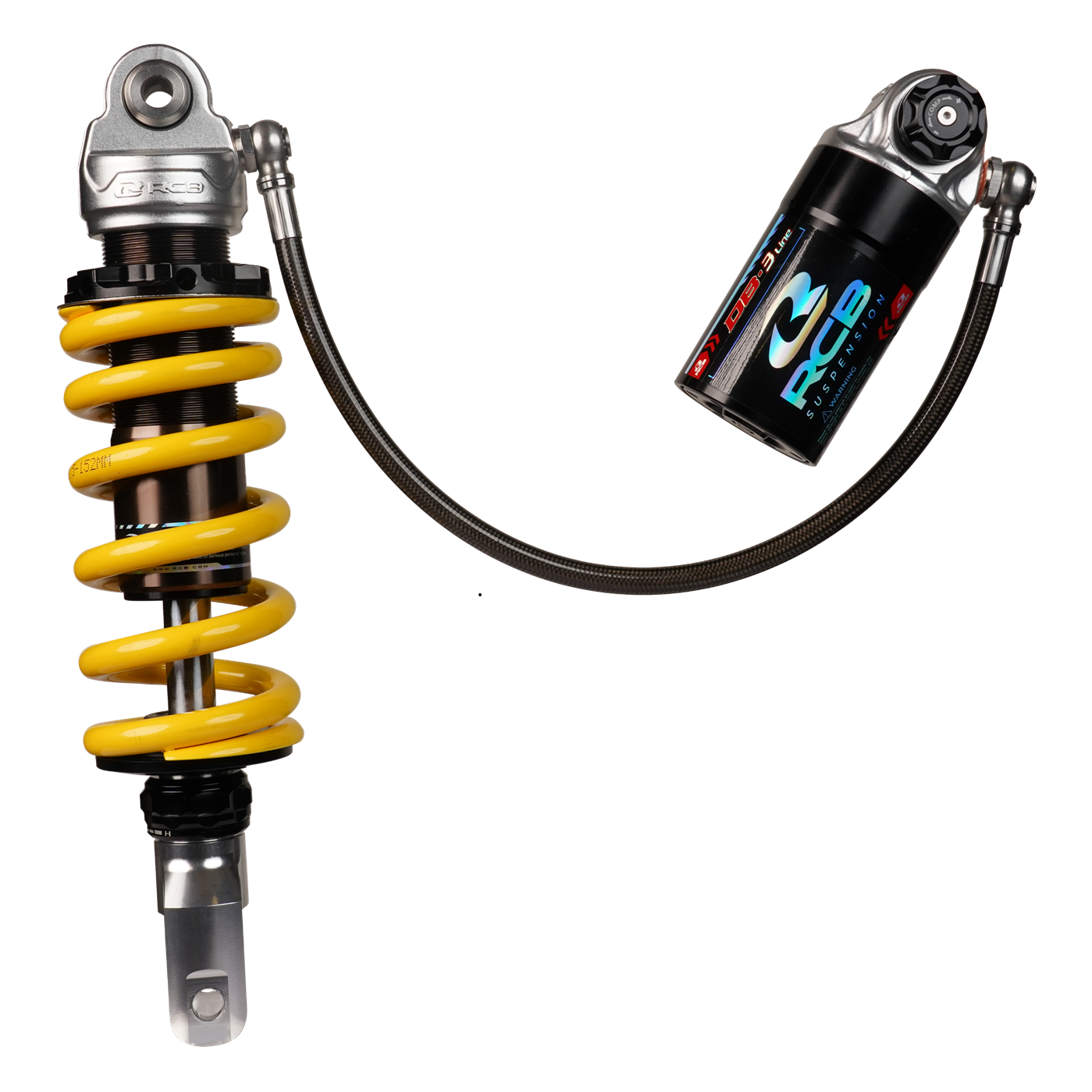

RCB DB3 LINE MONOSHOCK RCB Motorcycle Parts

PRODUCT STOCK REFERENCE

Product Code	Product Name	MODEL	Color
01M0366R	RCB DB3 LINE MONOSHOCK	YAMAHA LC135/LCV8 - 200MM	Red
01M0366S	RCB DB3 LINE MONOSHOCK	YAMAHA LC135/LCV8 - 200MM	Silver
01M0366Y	RCB DB3 LINE MONOSHOCK	YAMAHA LC135/LCV8 - 200MM	Yellow
01M0366Z	RCB DB3 LINE MONOSHOCK	YAMAHA LC135/LCV8 - 200MM	Premium Black
01M0367R	RCB DB3 LINE MONOSHOCK	YAMAHA Y15/Y16 - 205MM	Red
01M0367S	RCB DB3 LINE MONOSHOCK	YAMAHA Y15/Y16 - 205MM	Silver
01M0367Y	RCB DB3 LINE MONOSHOCK	YAMAHA Y15/Y16 - 205MM	Yellow
01M0367Z	RCB DB3 LINE MONOSHOCK	YAMAHA Y15/Y16 - 205MM	Premium Black
01M0368R	RCB DB3 LINE MONOSHOCK	RS150/HONDA RSX150 - 229MM	Red
01M0368S	RCB DB3 LINE MONOSHOCK	RS150/HONDA RSX150 - 229MM	Silver
01M0368Y	RCB DB3 LINE MONOSHOCK	RS150/HONDA RSX150 - 229MM	Yellow
01M0368Z	RCB DB3 LINE MONOSHOCK	RS150/HONDA RSX150 - 229MM	Premium Black
01M0369R	RCB DB3 LINE MONOSHOCK	BELANG/RAIDER 285MM	Red
01M0369S	RCB DB3 LINE MONOSHOCK	BELANG/RAIDER 285MM	Silver
01M0369Y	RCB DB3 LINE MONOSHOCK	BELANG/RAIDER 285MM	Yellow
01M0369Z	RCB DB3 LINE MONOSHOCK	BELANG/RAIDER 285MM	Premium Black
01M0370R	RCB DB3 LINE MONOSHOCK	R15/FZ150/MT15-265MM	Red
01M0370S	RCB DB3 LINE MONOSHOCK	R15/FZ150/MT15-265MM	Silver
01M0370Y	RCB DB3 LINE MONOSHOCK	R15/FZ150/MT15-265MM	Yellow
01M0370Z	RCB DB3 LINE MONOSHOCK	R15/FZ150/MT15-265MM	Premium Black
01M0371R	RCB DB3 LINE MONOSHOCK	CBR150 - 300MM	Red
01M0371S	RCB DB3 LINE MONOSHOCK	CBR150 - 300MM	Silver
01M0371Y	RCB DB3 LINE MONOSHOCK	CBR150 - 300MM	Yellow
01M0371Z	RCB DB3 LINE MONOSHOCK	CBR150 - 300MM	Premium Black

PRODUCT DESCRIPTION

FEATURES:

Big Diameter Piston
Piston ROD Diameter
HIGH PRESSURE NITROGEN
ADJUSTABLE COMPRESSION
Adjustable Rebound Damping
Adjustable Spring Preload
Anything Machined or Forged Alloy

ADJUSTMENTS

- ADJUSTABLE SPRING PRELOAD (SOFT TO HARD)

- ADJUSTABLE REBOUND SPEED 25 STEPS (SLOW TO FAST)

- ADJUSTABLE GAS TANK COMPRESSION 25 STEPS

WITH TANK GAS

- THE GAS NITROGEN IS SEPARATED FROM THE HYDRAULIC OIL BY A PISTON OR BLADDER. THIS KEEPS THE OIL UNDER PRESSURE, PREVENTING IT FROM FOAMING OR CAVITATING. FOAMING REDUCES THE SHOCK'S ABILITY TO DAMPEN BUMPS EFFECTIVELY.

How RCB DB3 LINE MONOSHOCK Delivers Reliable Motorcycle Suspension Performance

DB3 LINE

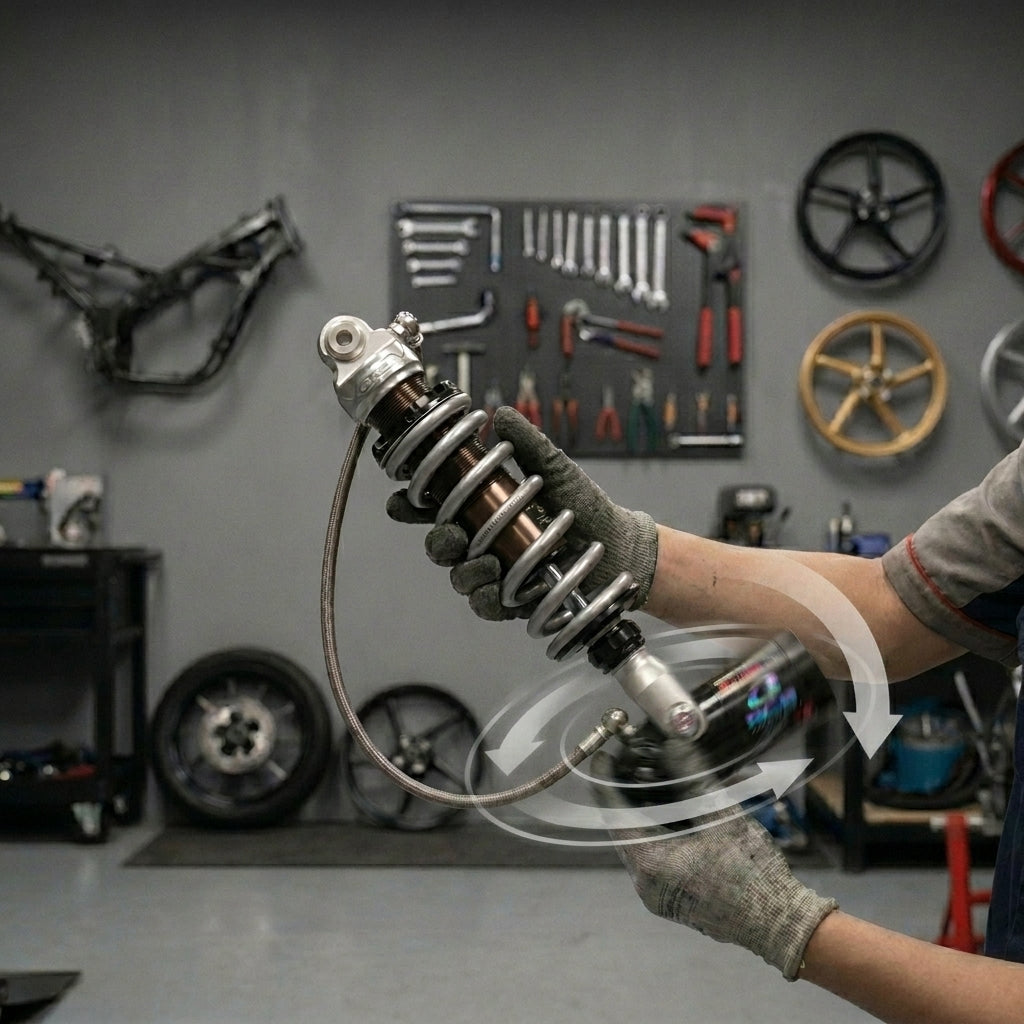

360° ROTATABLE HOSE CONNECTION

Features a 360-degree rotatable hose connection that allows flexible reservoir positioning and easier hose routing, ensuring cleaner installation and improved compatibility with various motorcycle setups.

DB3 LINE

FORGED TOP MOUNT

Designed with a large 46mm piston and robust 16mm rod to deliver superior damping performance. Using a high-strength forged top mount for exceptional durability.

DB3 LINE

FULLY ADJUSTABLE SUSPENSION

Equipped with adjustable spring preload, 25-step compression damping, and 25-step rebound damping, allowing riders to fine-tune suspension performance for optimal comfort, handling, and stability across different road conditions and riding styles.

DB3 LINE

HIGH PERFORMANCE GAS TANK

With a nitrogen gas reservoir, the oil remains under constant pressure to minimize foaming and cavitation, delivering more consistent damping performance and improved ride comfort.
